 Window & Door Profile
Click for Technical Information


"PROFIL", CNC PROFILING MACHINES FOR DOORS AND WINDOWS

Complete with: powered feeding unit with inverter; timed counter-revolving, chip-breaking shaft; main profiling shaft 590 mm with electronic adjustment; glazing-bead saving unit; unit for iron fittings. Available versions: "E2" with chip-breaking shaft 120 mm; "E3" with double profiling shaft 590 mm (the first shaft is both counter-revolving and with chip-breaking function); special feeding system with 17 cardan wheels and pneumatic pressure. Systems for the automatic work piece return are also available on request.

These machiness are ideal for both the medium-sized window manufacturers and the large industry as support machine out of line. Approx. productivity (combined with our tenoning machine "THEMA"): 5 windows with two wings / hour.

PROFIL E2

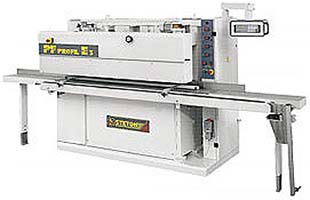

PROFIL E3



top
 Tenoners


"THEMA", CNC TENONING MACHINES FOR WINDOWS, WITH STACKED TOOLS

Complete with: tenoning carriage powered with inverter,; cut-off saw; main tenoning spindle 590 mm high, with computerised positioning; chip-breaking automatic system with jumping vertical bar; pneumatic guards.

Available versions: "H 490" with tilting fence ± 45°; "H 600" with wider carriage and tilting fence ± 60°; "H 600 VIDEO" with swivelling carriage ± 60° with electronic fence, control with video, software for the window calculation.

Click for Technical Information

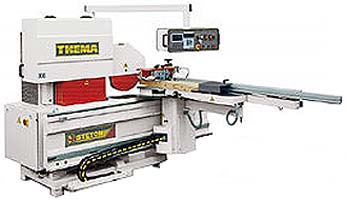

H 600 VIDEO


H 490 H 600


Cutting off



Tenoning two pieces
in one operation

TF 270E

For tenoning, inside profiling with glazing bead and outside profiling. Complete with: motorised tenoning carriage (with inverter and fence with digital read-out on request ); cut-off saw; tenoning and profiling main spindle 270 mm, with electronic adjustment; glazing-bead saving unit; feeder with 6 rollers. Very quick conversion of tenoning / profiling configuration. Approx. productivity: 3 windows with two wings / hour.

These machines are suitable for small and medium window manufacturers and also for big industry as support machines out of line.

Click for Technical Information

Inside profiling with
automatic glazing bead



Outside profiling


top
 Angular Window & Door


"PENTA", CNC ANGULAR PLANTS FOR DOORS AND WINDOWS

Complete with: powered tenoning carriage with inverter; cut-off saw; main tenoning shaft 590 mm with electronic displacement; chip-breaking device with vertical bar and automatic timed intervention; feeding system with variator in profiling side; counter-revolving timed chip-breaking shaft; main profiling shaft 590 mm ; glazing-bead saving unit; unit for hardware fitting. The workpiece goes from tenoning to profiling section automatically.

Available versions: "PENTA" with tilting fence at 45 and chip-breaking shaft 120 mm; "PENTA S" with bigger carriage, tilting fence at 60, chip-breaking shaft 320 mm; "PENTA VIDEO" with swinging carriage and electronic fence on request, double profiling shaft 590 mm (the first shaft is both counter-revolving and timed with chip-breaking function), programmer with display, software for window estimate. Systems for the automatic workpiece return are available on request.

This plant is ideal for both the medium-sized windows makers and for the large industry as support machine out of line. Approx. productivity: 5-6 windows with two wings / hour.

Click for Technical Information

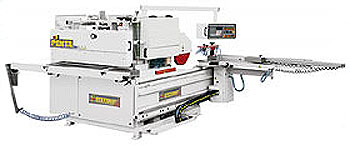

PENTA VIDEO


PENTA PENTA S

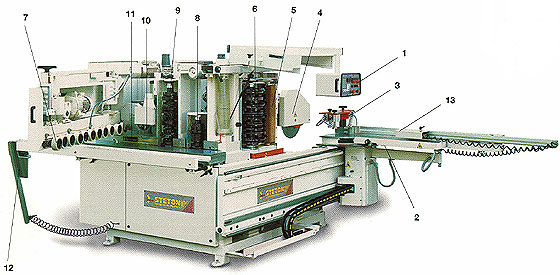

MAIN OPTIONAL ITEMS
1) Electronic programmer; 2) Tenoning carriage; 3) Pneumatic hold-down unit; 4) Cut-off saw;
5) automatic chip-breaking device; 6) Programmable tenoning spindle; 7) Feeding System;
8) Timed chip-breaking spindle; 9) Programmable profiling spindle; 10) Glazing-bead saving unit;
11) Spindle for hardware fitting; 12) Auxiliary squaring carriage; 13) Electronic tenoning fence (Penta Video, optional).

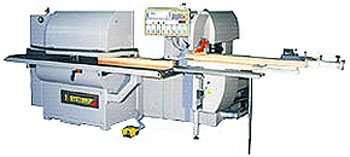

FLIPPER

a new angular plant for the average production of approx. 30 windows / day, characterized by several innovating solutions. Its main feature, covered by international patent, is that the first profiling spindle ("Flipper") can be displaced from the right to the left of the piece and can be used both like chip-breaking and external profiling spindle, thus assuring high versatility and flexibility to the plant.

Click for Technical Information
The 4-axis computer controls the main spindles, the tenoning carriage, the blade adjustment and the chip-breaking device on the tenoning fence, with angle visualization. Among optional items: laser, programmable closing of suction hoods, electric displacement of "Flipper" spindle with visualization, 3rd profiling spindle, spindle for hardware fitting.

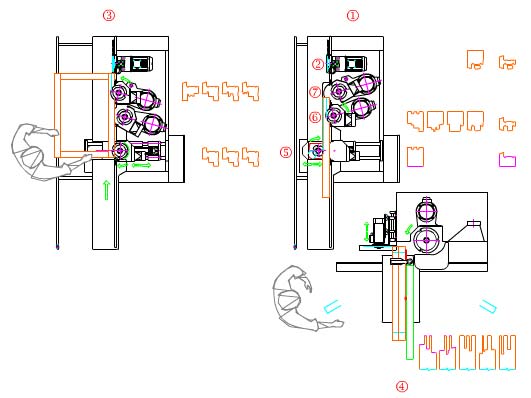

1 - Internal profiling.
2 - Glazing-bead saving unitT (or, in alternative, unit for hardware fitting)
3 - External profiling (squaring) of wings, with flipper spindle in right position (with timed intervention & chip-breaking function)
4 - Cut and tenoning
5 - Flipper spindle in left position for the external profiling
6 - 2nd profiling spindle
7 - 3rd Unit (optional): Additional profiling spindle or, in alternative, unit for hardware fitting
