 Circular Saws
Click for Technical Information

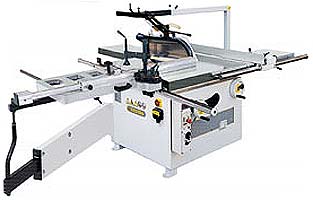

"SCE 400" with tilting blade 400 mm (scoring saw on request).

Thanks to its strong structure, this machine is ideal for general carpentry work. Also available with carriage sliding on round guide (version SCE 400 C) and scoring saw on request, it can also be used for panels. Solidity, practicality and compactness at a reasonable price.


SCE 400 SCE 400 C

top
 Panel Saws

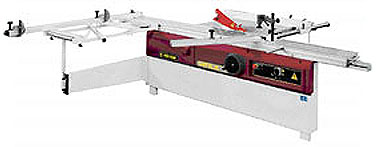

"NATALIA" with tilting blade 300 mm and scoring saw.

Available with anodized aluminium carriage 2600 or 3200 mm long, sliding on prismatic guides with hardened wheels. Among the optional items: sawblade Ø 320 mm with bridge guard.

Click for Technical Information

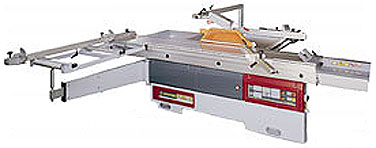

"PUMA B" and "PUMA S" with tilting blade 400 mm and scoring saw with independent motor.

Puma B has manual adjustments, Puma S has electric adjustments for blade height and angle and manual adjustments for scoring saw; aluminium carriage length from 2600 up to 4300 mm and width 400 mm, sliding on round hardened steel bars. Puma B and S can be equipped with a wide range of optional items, among which are: swinging control board, motorised carriage, additional double squaring table, lengthwise pressure device, trigonometric goniometer, parallel fence and squaring fence with electronic read-out, laser, automatic star-delta starters.

Click for Technical Information

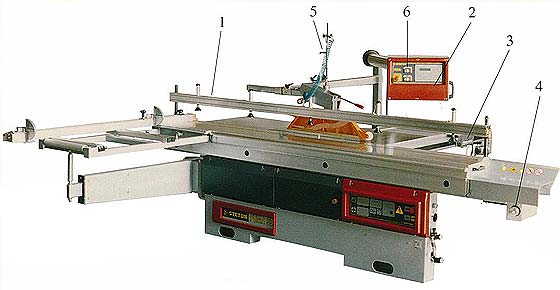

OPTIONAL ITEMS
1) Lengthwise pneumatic hold-down; 2) Overhanging control board; 3) Electronic programmable parallel fence;
4) Powered carriage; 5) Laser indicating the line of cut; 6) Automatic SD starters with pushbuttons.
Plus: electronic read-out on the parallel and/or the cross fences, precision goniometer, additional swivelling fence on the carriage, uprated motors and more.

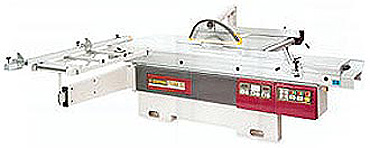

"PUMA" with tilting blade Ø 400 mm and scoring saw with electric adjustments of main blade height, angle, height and alignment of the scoring blade.

The aluminium carriage, length from 2600 up to 4300 mm and width 400 mm, slides on round hardened steel bars. Puma offers a wide range of optional items, including: swinging control board, electronic parallel fence, electronic programmer (to control the parallel fence and the adjustments for main blade and scoring saw) postforming cycle, powered carriage, additional double squaring table, lengthwise pressure device, trigonometric goniometer.

Puma can be equipped, on request, with over-hanging control board, electronic programmer to control blade height, angle and positioning of the parallel fence, electronic read-out on the squaring fence, linear pneumatic hold-down, additional support frame on rail. The support frame on swivelling arm with telescopic extension is standard.

Also available, on request, powered carriage and accurate trigonometric goniometer.

Click for Technical Information

top

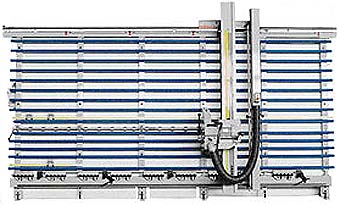

 Vertical Panel Saws


"400 E"
4200 x 2200 mm, depth of cut 50 mm, blade Ø 250 mm.

"515 S"
4300 x 2200 mm, depth of cut 80 mm, blade Ø 300 mm.

Available on request: scoring unit, different dimensions; versions with electronic program.


top
 Beamsaws


Click for Technical Information

"SPLENDIDA"

Cutting height 80 mm, electronic pusher with pneumatic pincers, blade carriage feed with direct drive (without chains) and variable speed from the control board with inverter. Easy-use electronic programmer, available on request complete with video and floppy-disk, equipped with optimizing program. Optional: rear tables with wheels and front air cushion tables. Accuracy and versatility at low price for small firms. Tiltable blade also available.



"S 2000"

With electronic pusher complete with pneumatic pincers, brushless motor, toothed rachs, helicoidal pinions, guides with linear ball-circulation bearings (speed up to 100 m/min); blade carriage feeding with rack and pinion system and variable speed (up to 100 m/min) with inverter; electronic adjustments of blade and scoring saw, with displacements on linear ball-circulation bearings; automatic centralized lubrication. Control from PC, with advanced and diagnostic graphics. Optimizing software programs and remote service, available on request. Versions (also customized) are available with cutting height 130, 150 and 180 mm and a line of cut with front direct loading or with rear lifting table (versions "Century T"), both standard and with rollers and pre-loading roller table.

Click for Technical Information



Click for Technical Information

"CENTURY"

High performing beamsaw with electronic pusher complete with pneumatic pincers, brushless motor, toothed racks, helicoidal pinions, guides with linear ball-circulation bearings (speed up to 100 m/min); blade carriage feeding with rack and pinion system and variable speed (up to 100 m/min) with inverter; electronic adjustments of blade and scoring saw, with displacements on linear ball-circulation bearings; automatic centralized lubrication. Control from PC, using advanced diagnostic graphics. Optimizing software programs and remote service, on request. Versions (also customized) are available with cutting height 130, 150 and 180 mm and a line of cut with front direct loading or with rear lifting table (versions "Century T"), both standard and with rollers and pre-loading roller table.


top
 Angular Sizing Plants


Steton have over thirty-years experience in this field and are able to offer solutions at any level, even customized, with cutting heights ranging from 90 to more than 200 mm, in different equipments, up to plants with double loading systems (lifting table and suction-cup system, pre-cut system with possible independent unloader, unloading and automatic re-stacking plant, trims disposal system, optimizing software program and stock management.

Technical features can be supplied on request, according to the details given by the customer.

Lay-out of a complex angular plant, including:
  • pre-loading roller table
  • lifting table and suction cup loader
  • unloading roller table pallet
  • 1st pusher
  • head cross pre-cut unit, with side unloader and cup re-stacker on the lifting table
  • lengthwise beam saw
  • 2nd pusher
  • crosswise beam saw
  • main unloader / re-stacker
  • end shunting system


top
 Bandsaws


Steton offers a complete series of band saws, with flywheels diameter 360, 400, 460, 500, 560, 600, 700, 800, 900 mm; optional items and feeders on request.


top
 Cut-off Saws

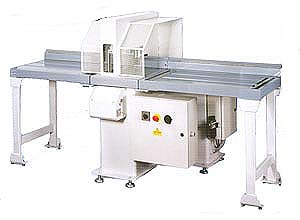

For the processing of cross-cut, Steton offers:

  • Pneumatic quick cut off saw with pressure device (TP 350, TP 450, TP 500)
  • Hydraulic quick cut off saw with pressure device (Mod. TP 600)


top
 Multi-rip Saws
Click for Technical Information


These machines are available in a wide rage of models, with depth of cut 80, 100, 110, 120, 130 mm, motor power from 20 HP (15 kW) to 100 HP (73,5 kW). Max distance between blades from 220 mm to 450 mm. Most machines of this series have a "sleeve" for outboard quick fitting of the blades and they can be equipped on request with a trimming device having two blades: one fixed and one with visualised variable positioning. The bigger models have hydraulic feeding.
